Icom IC-260a schematics and parts layout

I have received numerous requests for the schematics, parts layout diagrams, and manual for this radio, so I thought I'd finally scan them in and put them online. Here they are.

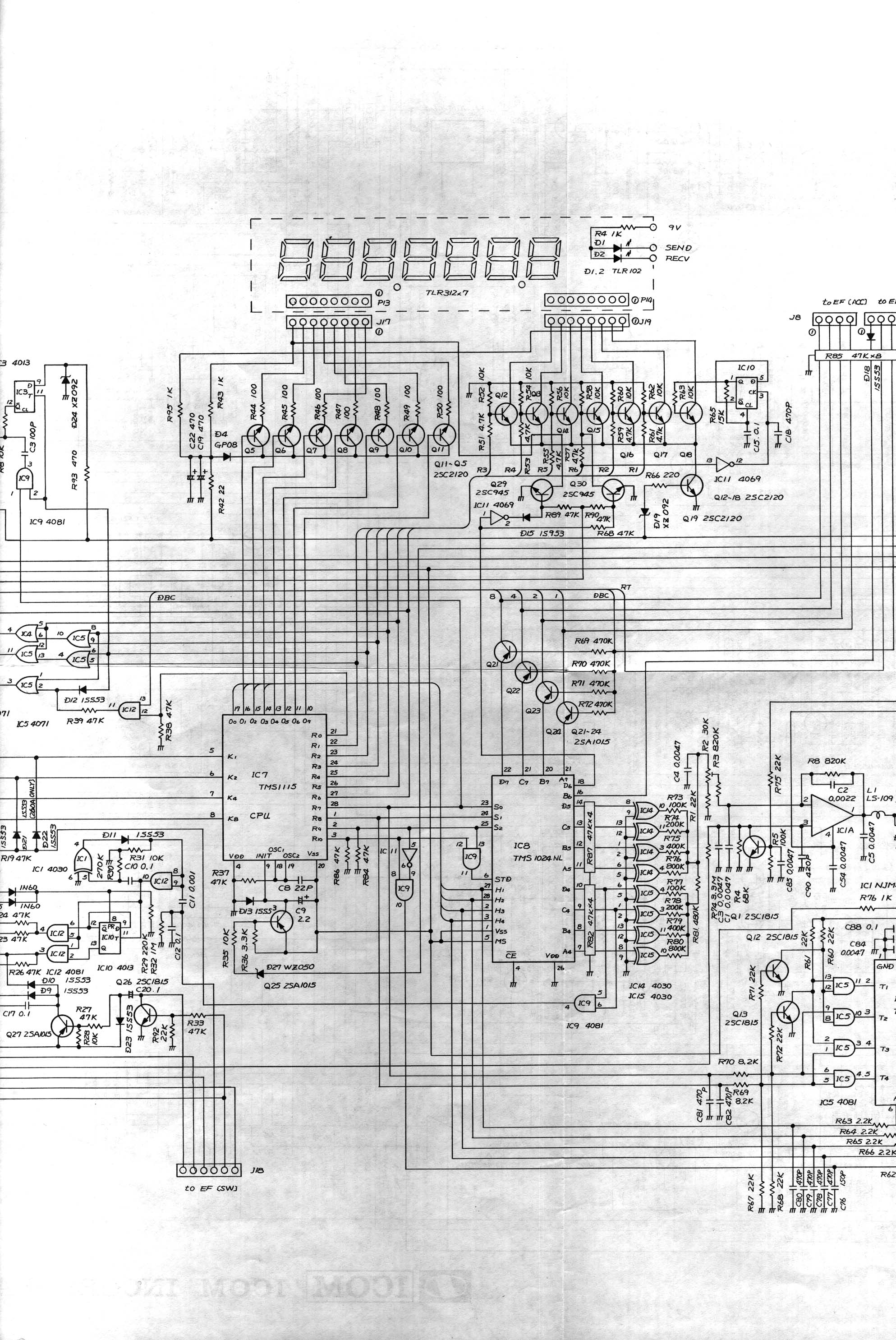

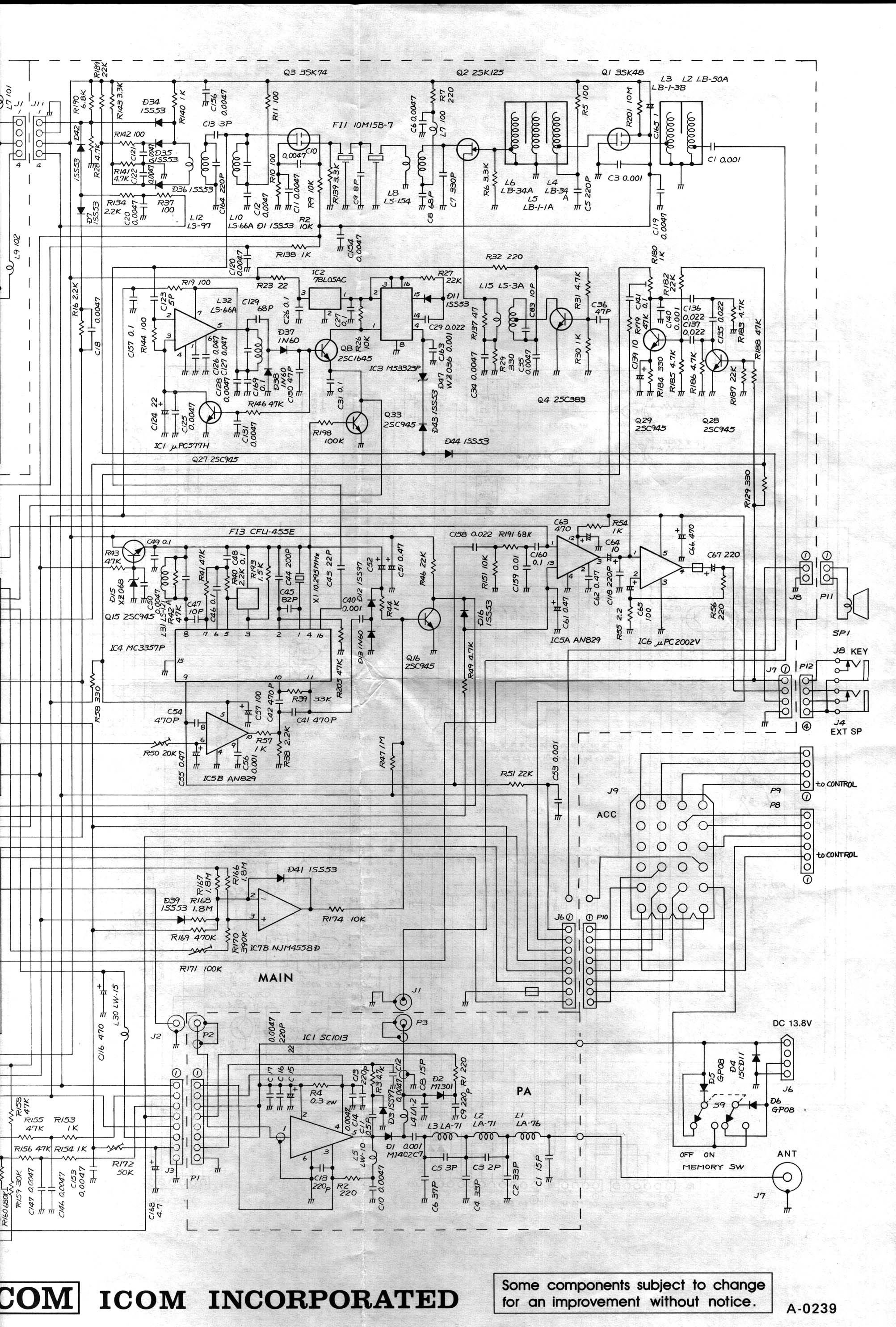

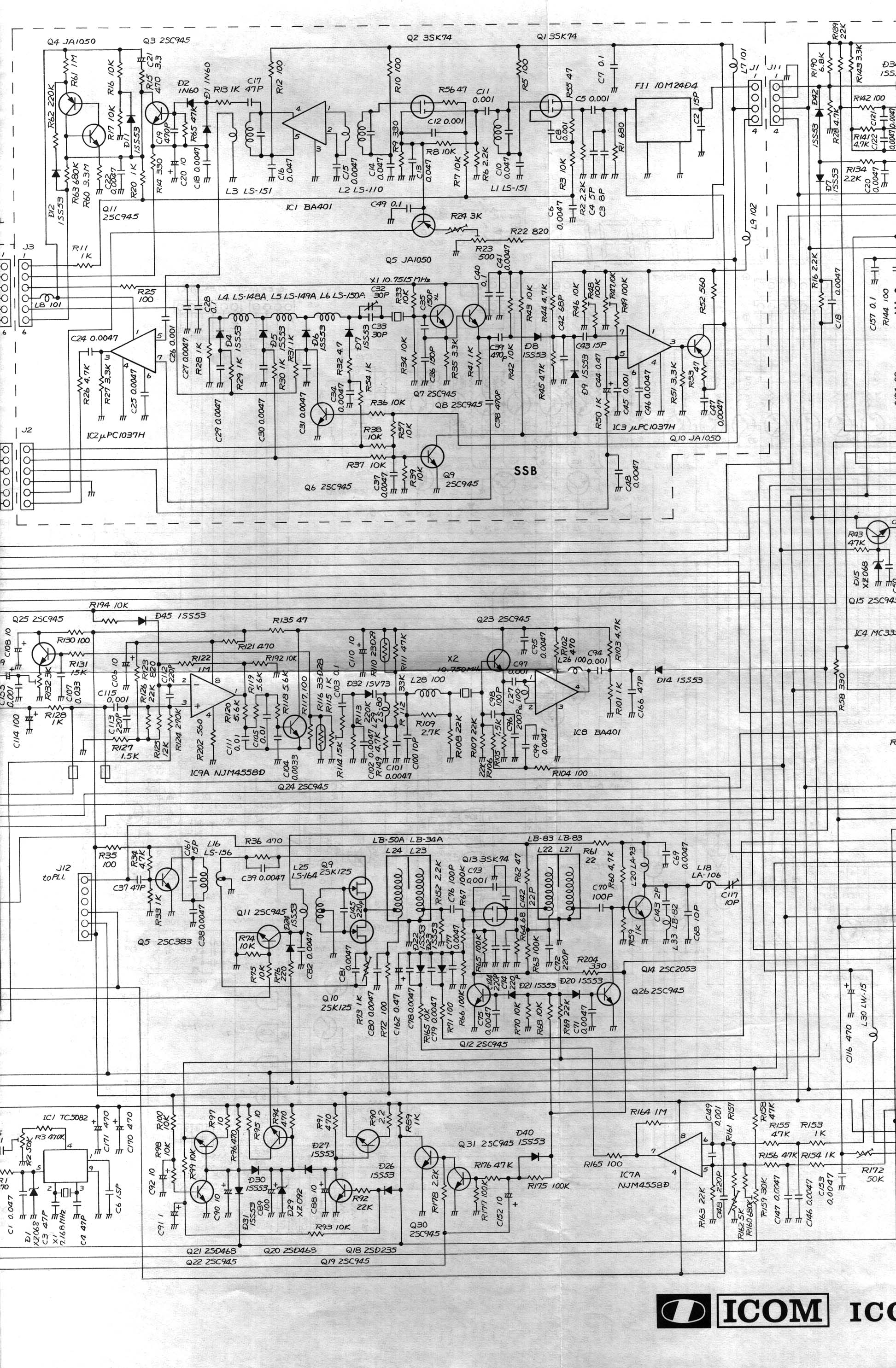

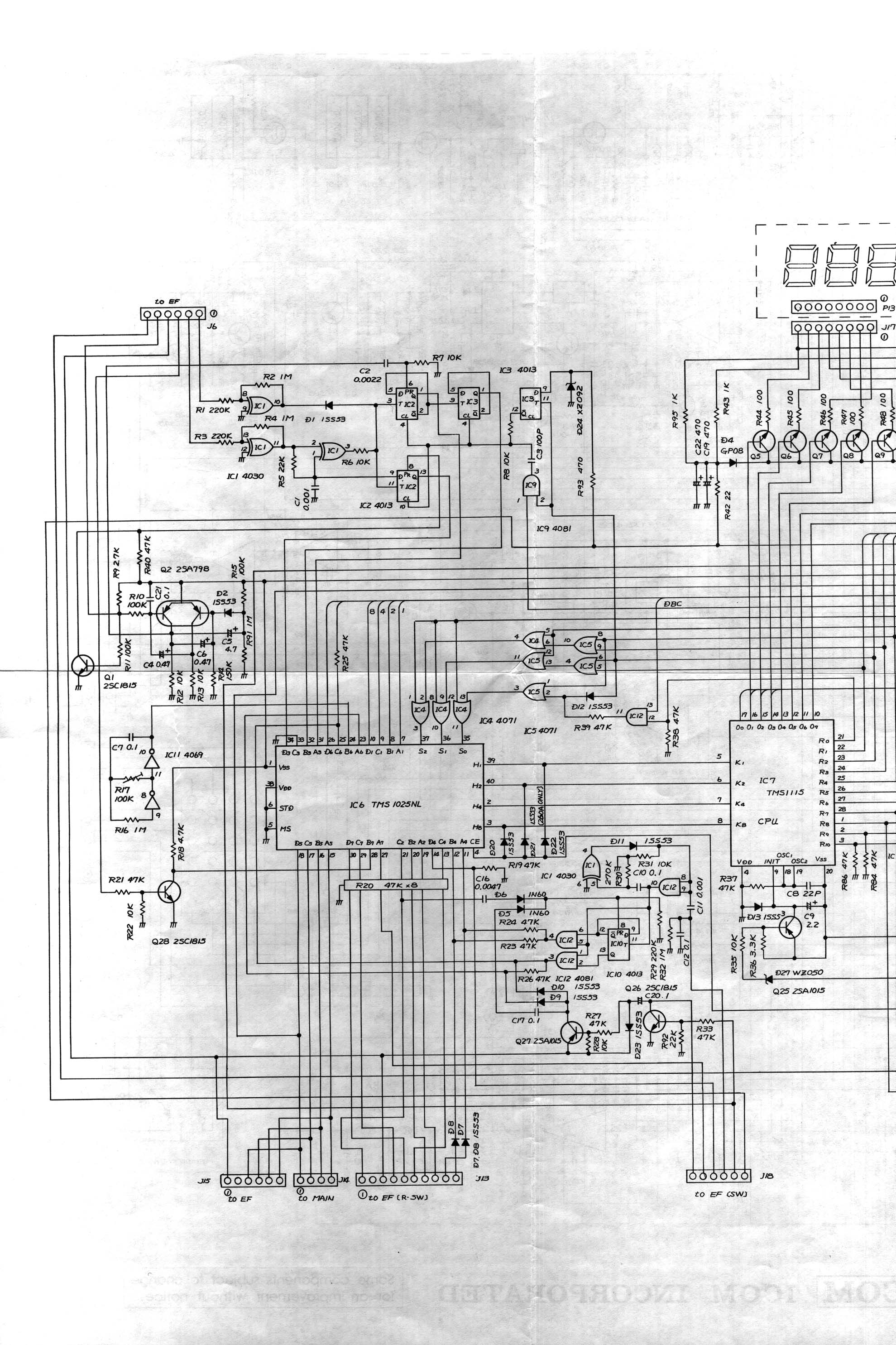

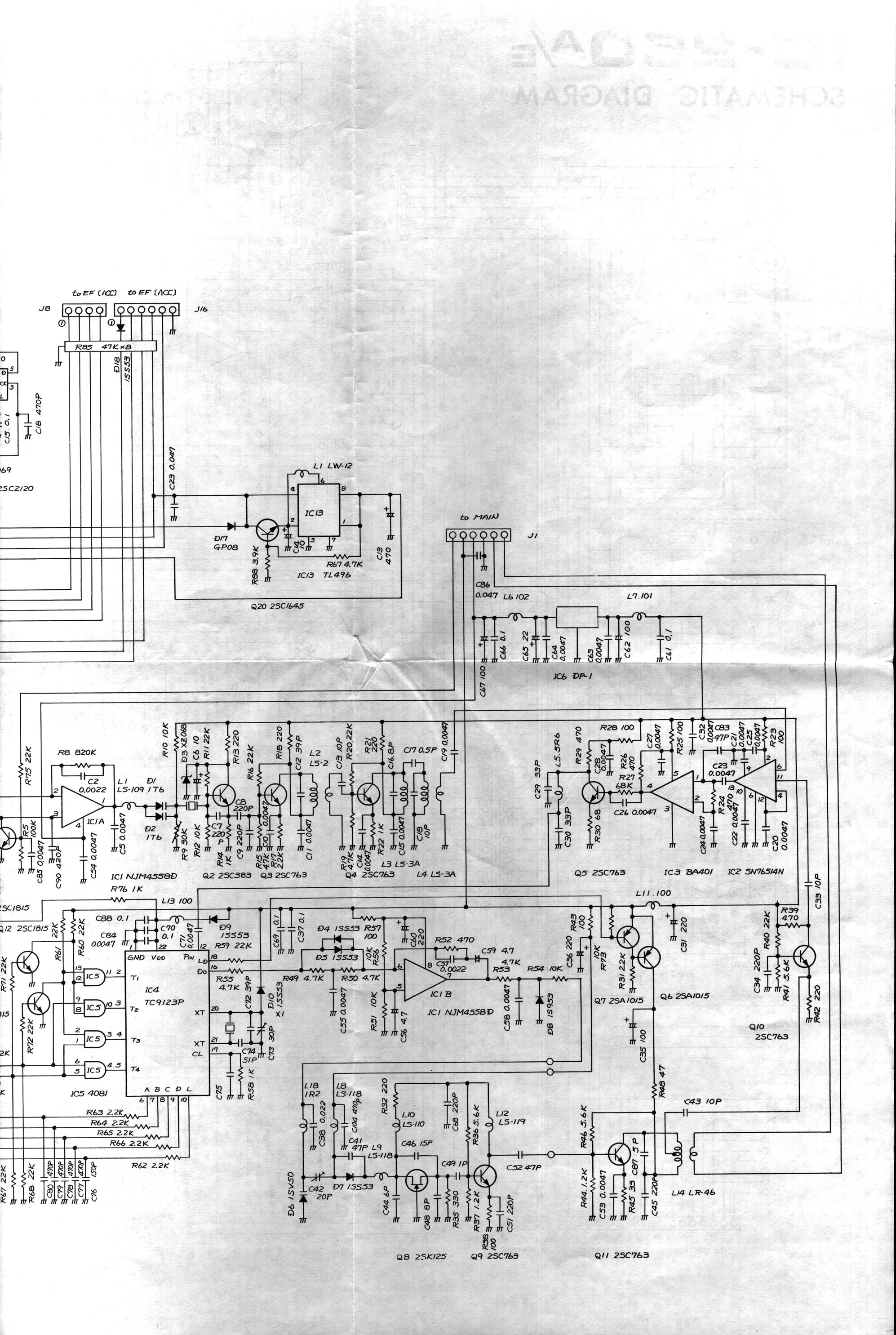

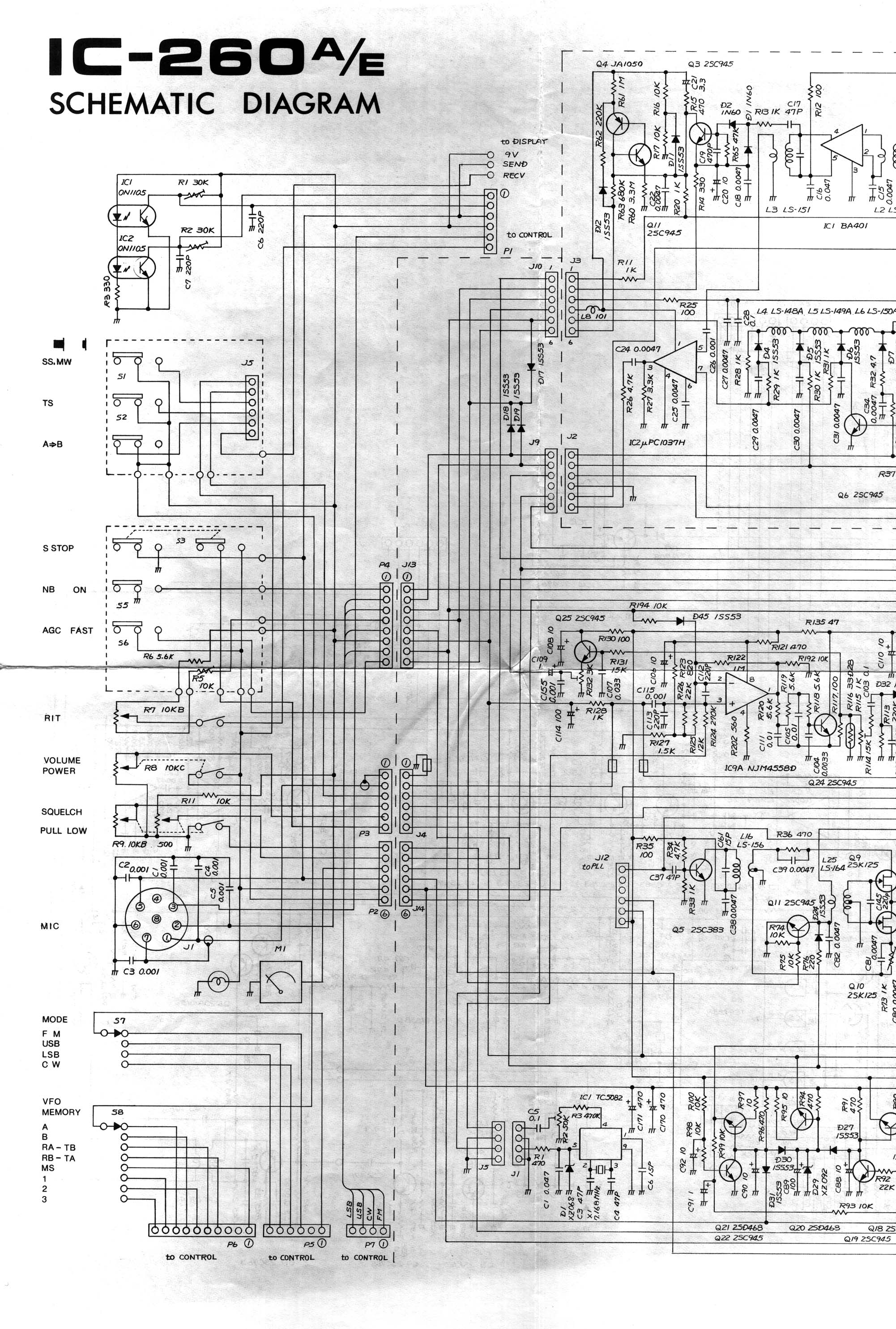

Each schematic has been scanned into three approximately letter-sized pieces, so you can print them out and piece them together. European users should have no problem printing the images to A4 paper. There is significant overlap between images, but that should make them fairly easy to match up.

Each image is between 500k and 900k, and is about 7.5 x 10 inches at 300 DPI. Print the images at 300 DPI (they look huge onscreen, but that's alright).

Note that the owner's manual is also available.

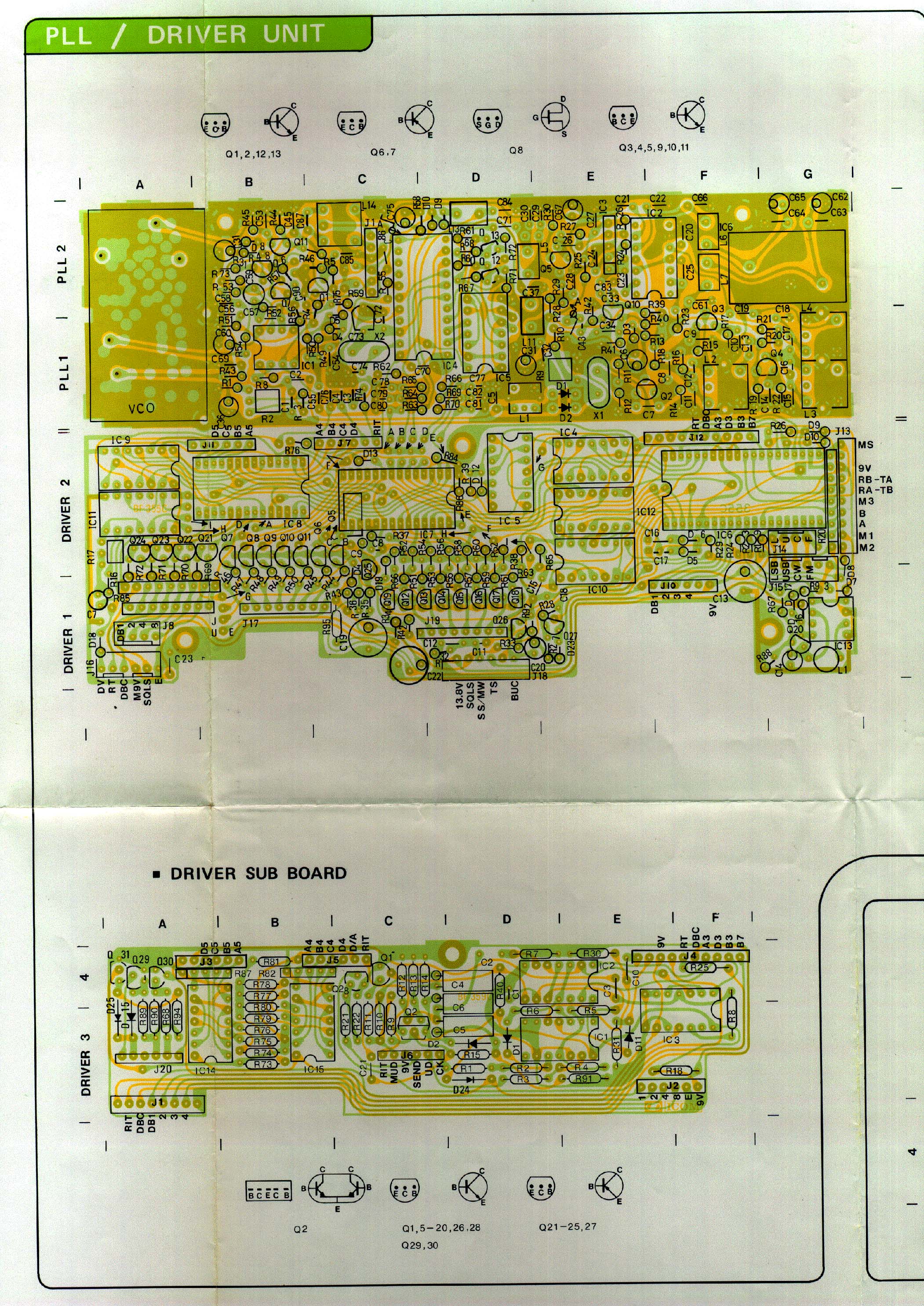

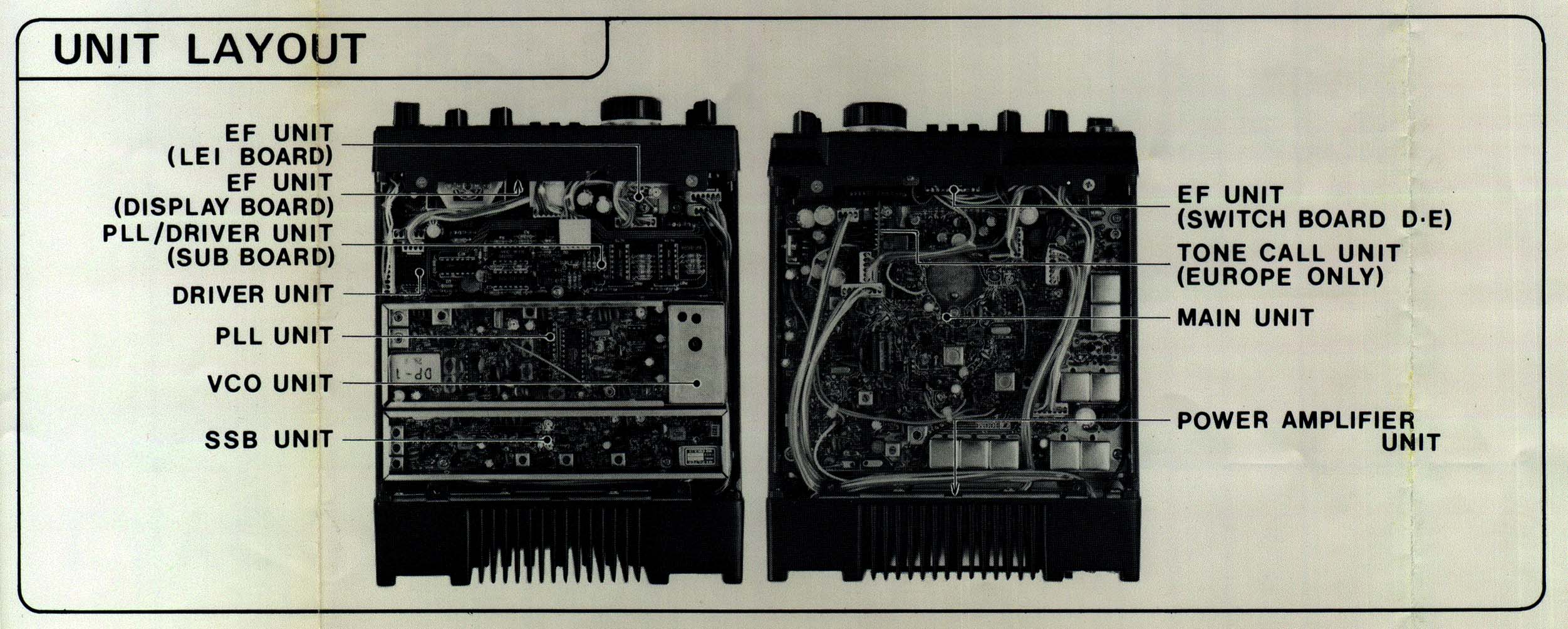

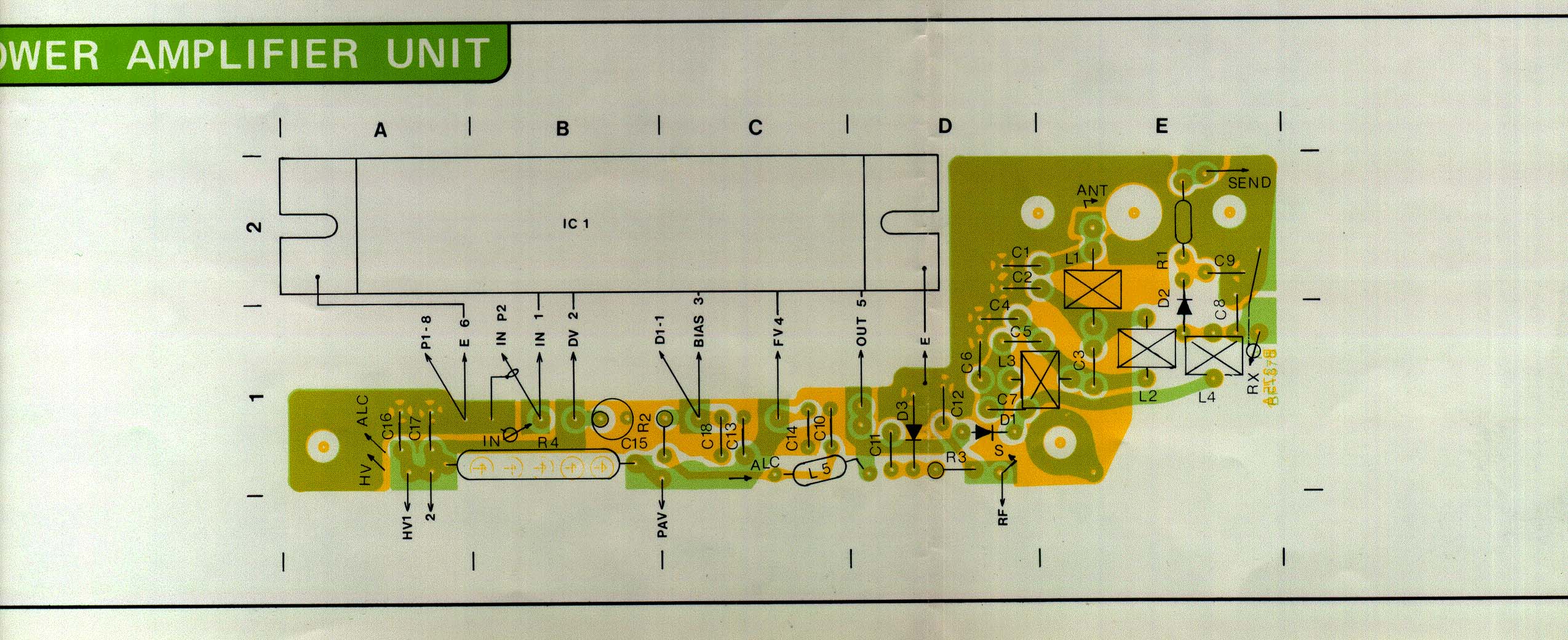

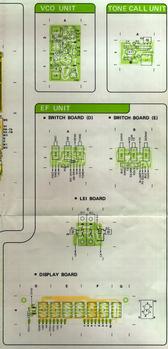

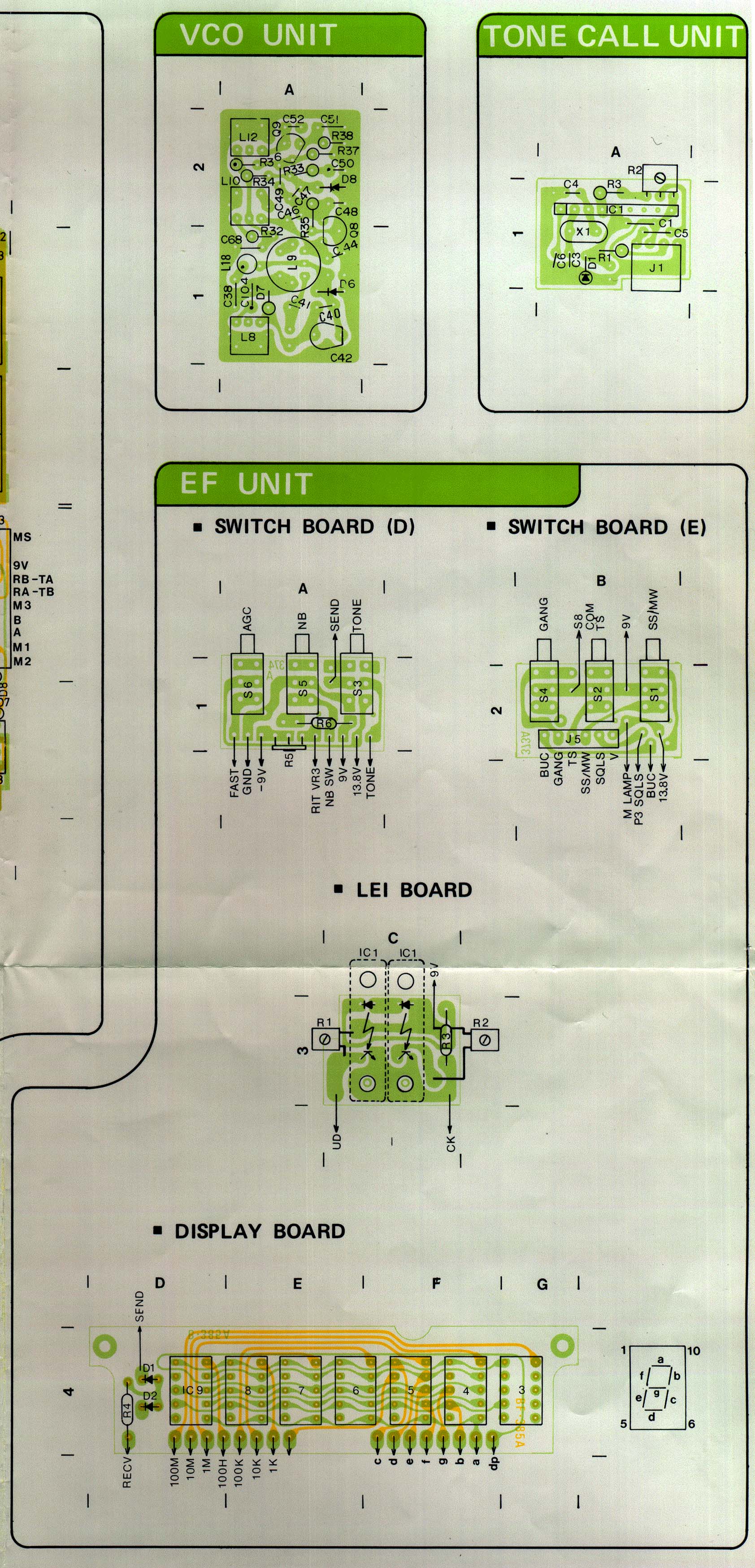

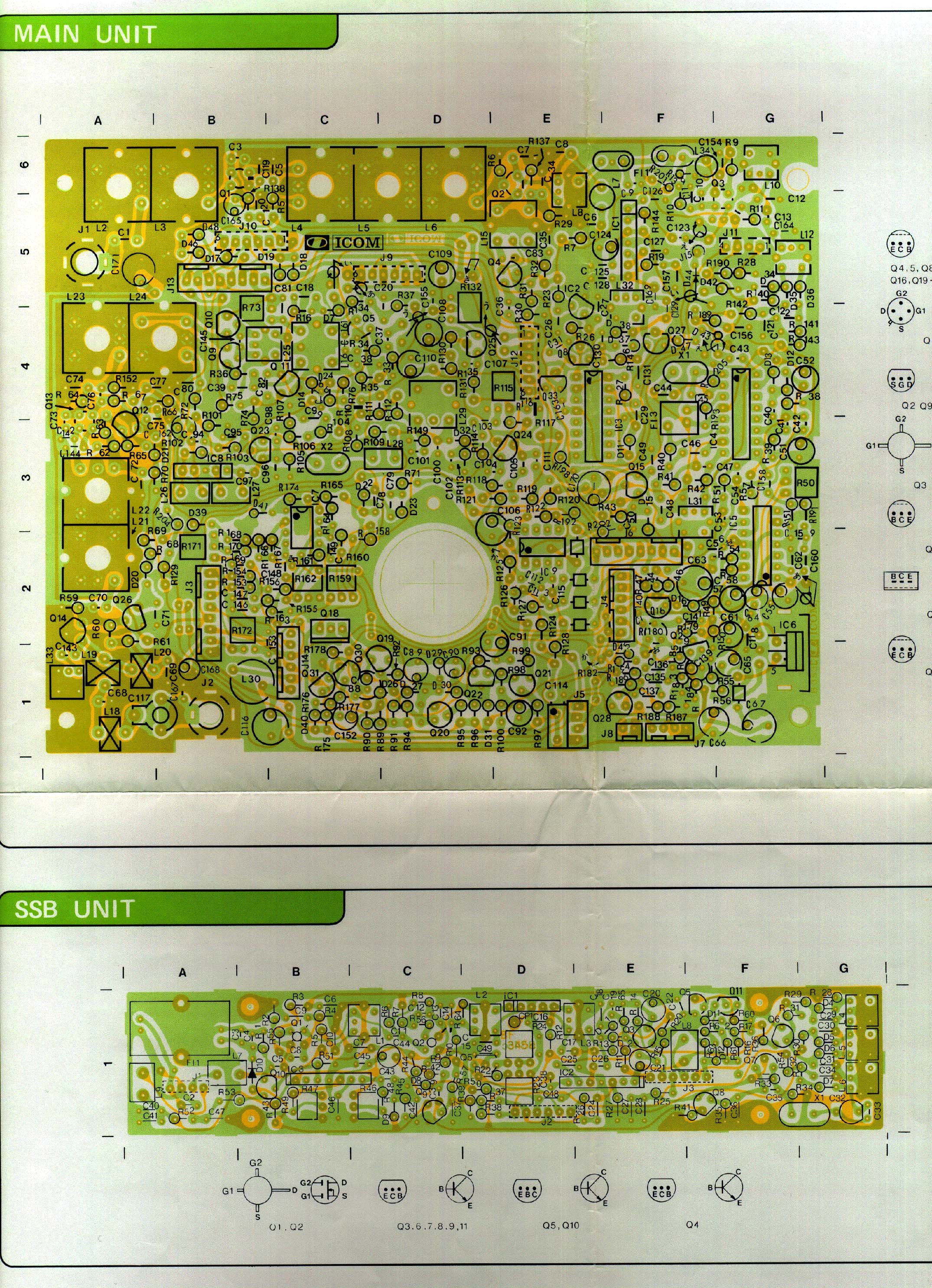

I also have the parts layout diagrams available:

Created by Ian Johnston. Questions? Please mail me.
