I've had this conversation a number of times lately, so I'm sure there are others out there who would like to hear it as well.
Since about 2006 (see this previous article), I've been thinking about building an airplane, and for most of that time, I've centered my interest on a biplane. As I said before, I have gone through a lot of designs, but have basically settled on the Marquart Charger.

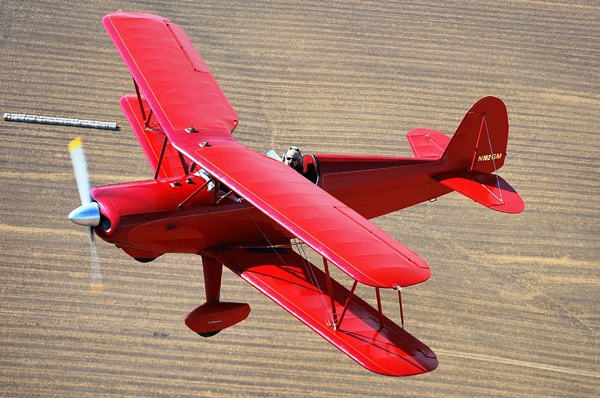

Glenn Mittenberger's Marquart Charger
The Charger was designed in 1968 by Ed Marquart, as an American version of the Bücker Jungmann, a German biplane from 1932. The Jungmann was designed as a light trainer, good with relatively low horsepower, and nimble enough to do aerobatics. The Charger continues with that plan, though it uses more modern steel in the fuselage. It's a two-seat plane, and I'll be able to take up passengers with no problem, although weight will always be a thing to watch out for.

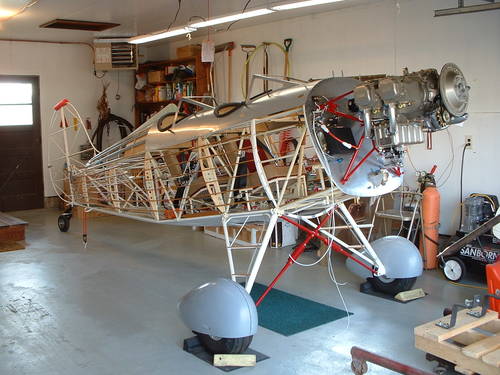

Jeff and John Hansen's Hatz Classic - click for more pics
The plane is built out of steel tubing in the fuselage (the body), and the wings are made out of spruce wood. The whole thing is covered in fabric, except the sides of the fuselage are covered in aluminum from the engine back to the back seat. The fabric that would have been used in the 30s was cotton, but apparently that grade of cotton is no longer being produced. That makes sense, since when polyester came on the scene, it was a big improvement: cotton needs to be shrunk onto the frame with butyrate dope (a relatively noxious chemical, and a long, laborious process), while polyester can be shrunk on with a hot iron in a few passes.

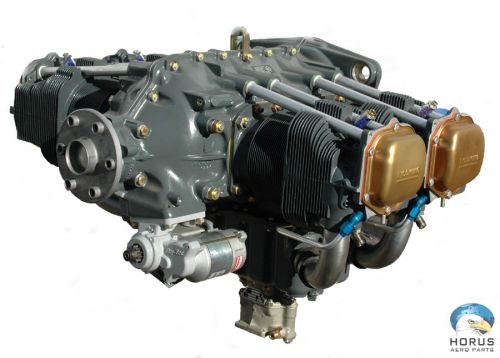

Lycoming O-320 engine
The engine will be around 150 HP, although exactly which engine I go with is still up in the air. Most likely, I'll go for the same engine that you'd find in a Cessna or Piper light plane, a Lycoming O-320. This is an engine that looks like an old VW Bug engine, but scaled up: 320 cubic inches works out to a 5.24 liter engine (the Bugs only got as big as 1.6 liters). It's a very well-proven design, and you can get parts and service pretty much anywhere you can find an airport.
Most people, after they've finished goggling at the idea of a normal person building a full-size airplane a person can climb into, then wonder where on earth I'm going to do this huge project. The answer to that is fairly straightforward: I'm days away from starting construction on a new one-car garage in the back yard. It will be bigger than my last one-car garage by a little bit, but also substantially taller, and since I'm building it with the specific purpose of building an airplane inside, it won't be the multipurpose hodge-podge space that my last garage was.
Of course, an entire airplane definitely won't fit inside there, so it'll be built in pieces. The fuselage is about 15 feet long, but only about 3 feet wide. No problem for a one-car space. Each wing panel (there are four) is about 5 feet front-to-back, and about 12 feet long. Again, no problem. The tail is around 7-8 feet wide, and 6 feet tall. So, I can fit each piece, unassembled, into the garage. Once it comes time to actually attach wings to fuselage, of course, I'll need a bigger space, but that's years away. I'll rent a hangar somewhere, hopefully not too many hours' drive away. I've already got my name on the list at Harvey Field in Snohomish, where I've been flying their Aeronca Champ 7AC.
I expect this project to take between 5 and 10 years, depending on how diligent I am about working on it regularly. I'm pretty sure I'll have periods of intense work, and periods of less intense work, possibly resembling slack to an outside observer.
This is something I've been wanting to do for a long time, and it's pretty exciting that I'm getting close to actually starting on it. I've technically started, putting in a few hours doing CAD work so I can get some of the numerous little metal pieces cut by a waterjet company rather than endlessly hacksawing away myself. That will be a huge time savings, and well worth the expense. I've also got my build logging system partially completed; it's based on a database, so I'll soon have a page where you can go look at the build log, and it will update as soon as I add a new entry.
I hope that's answered the most common questions, but you know how to reach me if you have more.
